Fully customizable . Please contact before order to :

sales@myshopfree.com

Delivery 60-90 days

SPECIFICATIONS



Battery: 48v60AH

Battery life: 5~6 hours

Brand Name: Jin Yang Hu

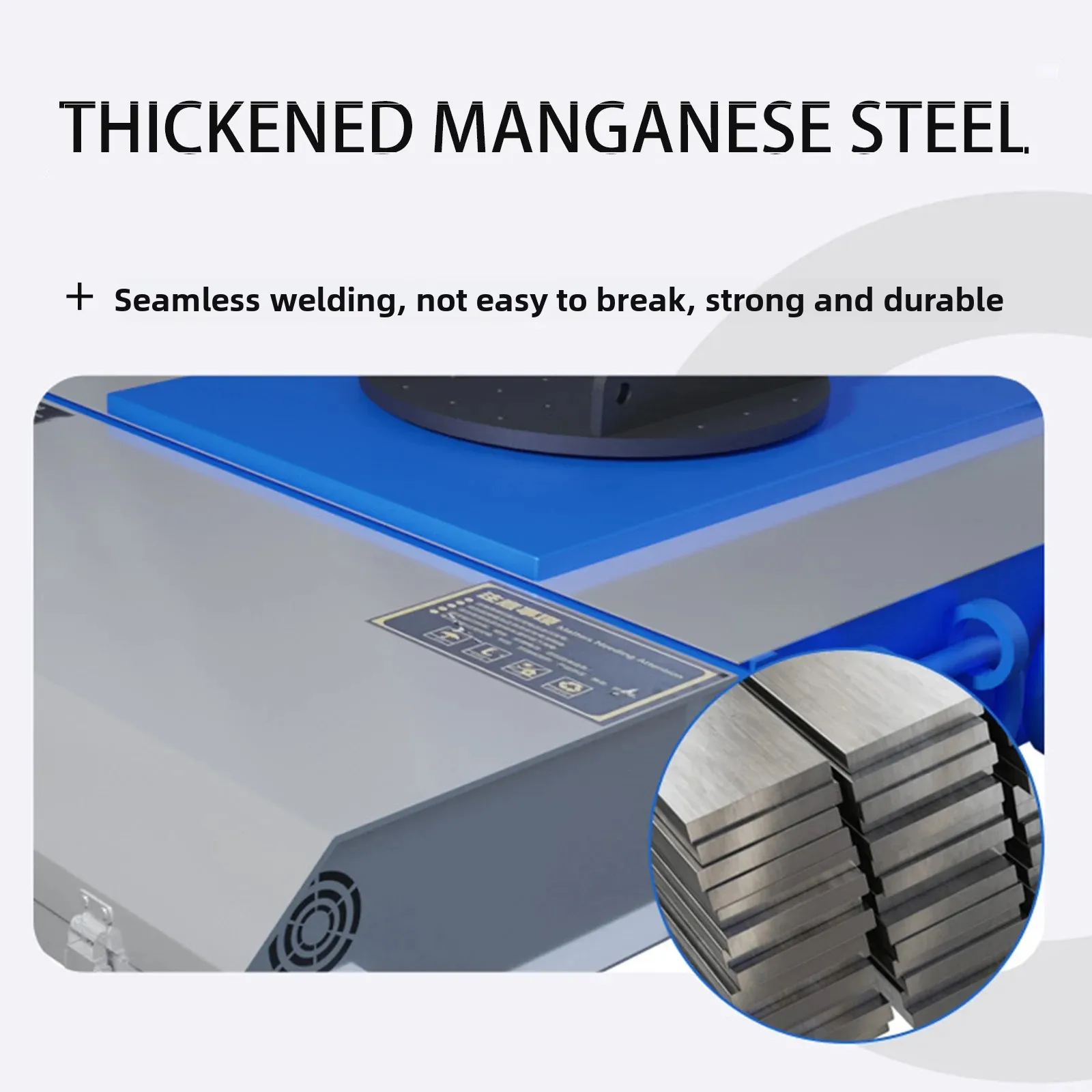

Carrier material l: manganese stee

High-concerned chemical: None

Material: Alloy Steel

Number of auxiliary wheels and specifications: 2/90*120 six wheels

Origin: Mainland China

Remote: C7 remote control(or industrial remote control)

Total load (tons): 20/25/30/40/50

Type: Other

Use: Commercial Manufacture

Wheel material: polyurethane

is_customized: Yes



Large products in the store can be customized and shipped, prices are negotiable, you can contact customer service for a quote, 24 hours online.

Or directly contact :

sales@myshopfree.com



Note:

Batteries in remote controls are restricted items for logistics transportation. Remote controls cannot be shipped with batteries included!!

20 Ton Electric Tank Configuration



l Dimensions:Length670(mm)Width620(mm)Height165(mm)

l Motor:750w(2sets)weightedgearboxwithbrake104flanges

l Controller: Dual driver D2T80A

l Remote:C7remotecontrol(orindustrialremotecontrol)

l Battery:48v60AH(ternarylithiumorlithiumironphosphate)

l Working current: 60A

l Charging current: 54.6

l Drivewheel:4pcs 90*135mm(highhardnessfullyimportedpolyurethane)

l Gear:LuoMengtitaniumhighstrengthgear(threemodes)

l Plate: 10mm Q355 steel plate

l Maximum towing weight: 20T

l Maximumload:10T



25ton electric tank configuration table



l Dimensions: Length 670(mm) Width 635(mm) Height 165(mm)

l Motor: 1000w (2 sets) weighted gearbox with brake 104flanges

l Controller: Dual driver D2T100A

l Remote: C7 remote control(or industrial remote control)

l Battery: 48v60AH (ternary lithium or lithium iron phosphate)

l Working current: 60A

l Charging current: 54.6

l Drive wheel: 4pcs 90*135mm(high hardness fully imported polyurethane)

l Gear: Luo Meng titanium high strength gear (three modes)

l Plate: 12mm Q355 steel plate

l Maximum towing weight: 25T

l Maximumload:12.5T

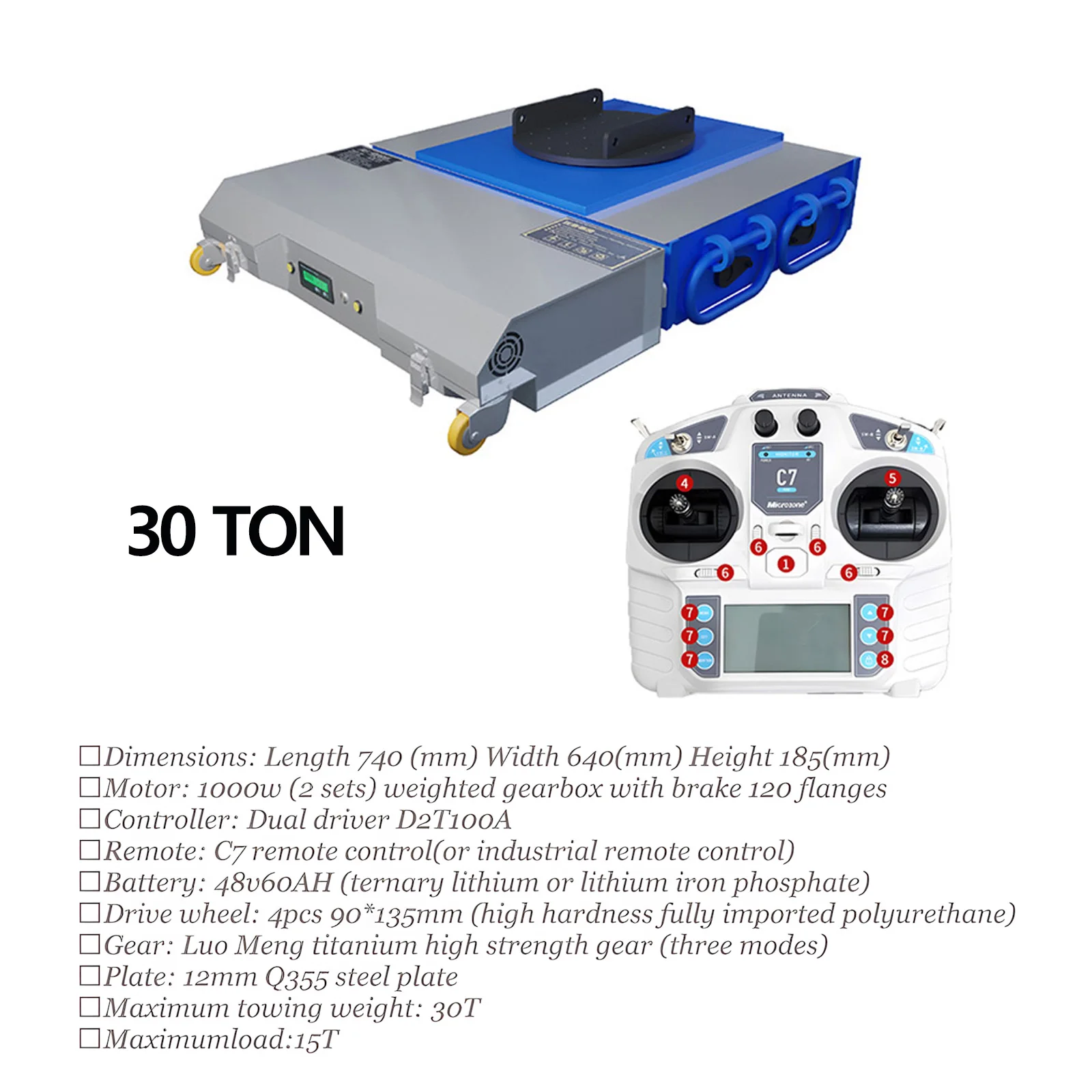

30ton electric tank configuration table

l Dimensions: Length 740(mm) Width 640(mm) Height 185(mm)

l Motor: 1000w (2 sets) weighted gearbox with brake 120flanges

l Controller: Dual driver D2T100A

l Remote: C7 remote control(or industrial remote control)

l Battery: 48v60AH (ternary lithium or lithium iron phosphate)

l Working current: 60A

l Charging current: 54.6

l Drive wheel: 4pcs 90*135mm(high hardness fully imported polyurethane)

l Gear: Luo Meng titanium high strength gear (three modes)

l Plate: 12mm Q355 steel plate

l Maximum towing weight: 30T

l Maximumload:15T

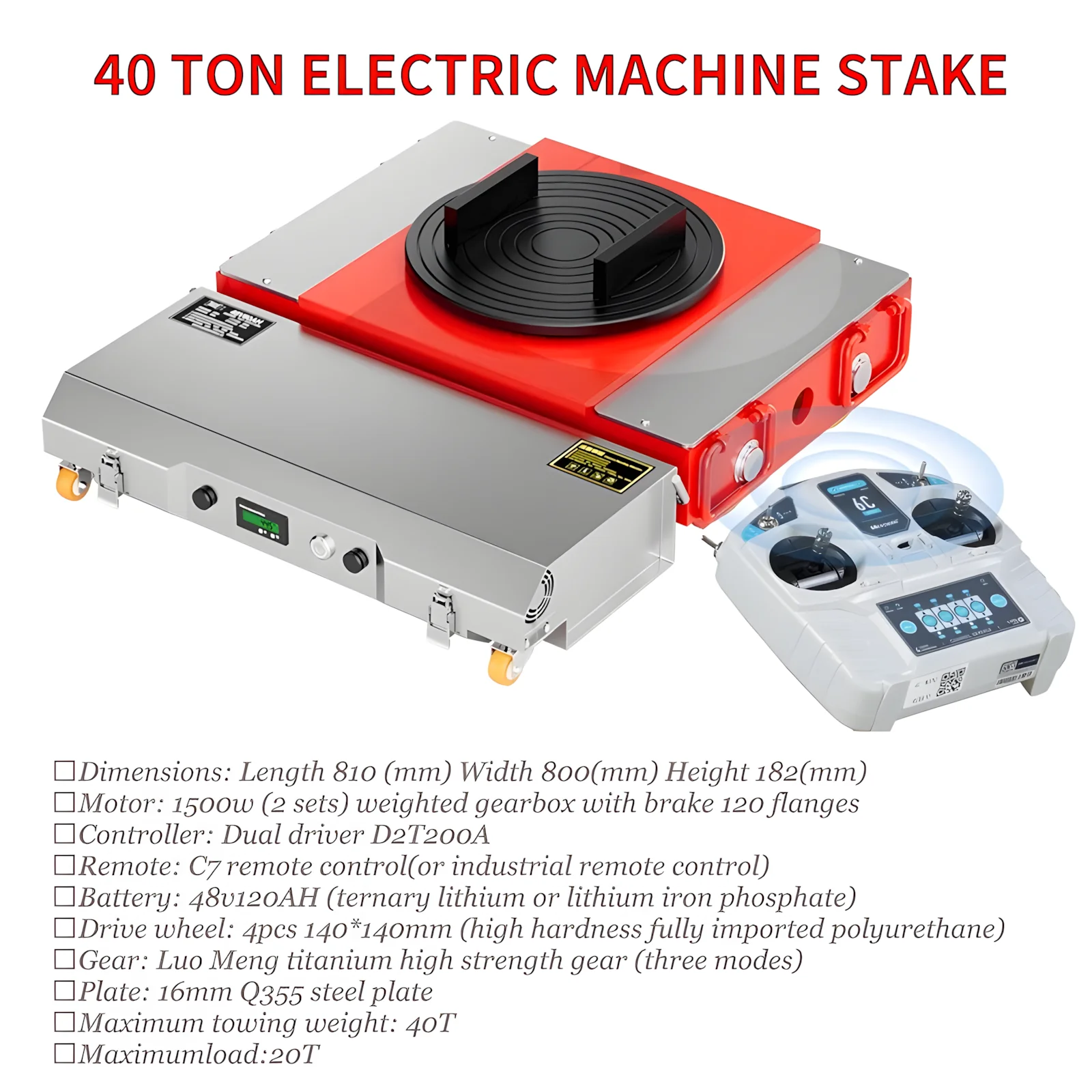

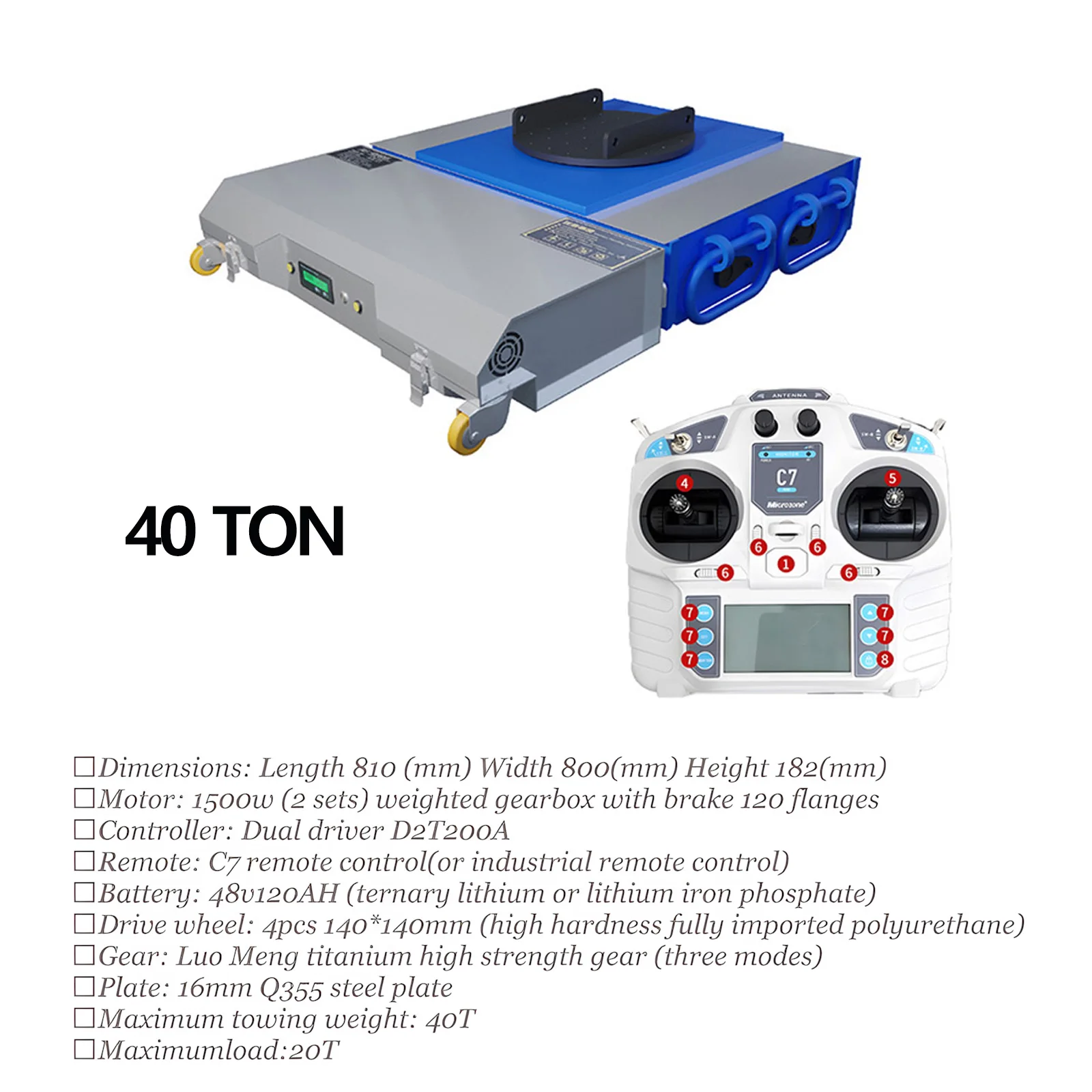

40 tons electric tank configuration

l Dimensions: Length 810(mm) Width 800(mm) Height 182(mm)

l Motor: 1500w (2 sets) weighted gearbox with brake 120flanges

l Controller: Dual driver D2T200A

l Remote: C7 remote control(or industrial remote control)

l Battery: 48v120AH (ternary lithium or lithium iron phosphate)

l Working current: 150A

l Charging current: 54.6

l Drive wheel: 4pcs 140*140mm(high hardness fully imported polyurethane)

l Gear: Luo Meng titanium high strength gear (three modes)

l Plate: 16mm Q355 steel plate

l Maximum towing weight: 40T

l Maximumload:20T



50 tons electric tank configuration



l Dimensions: Length 810(mm) Width 800(mm) Height 182(mm)

l Motor: 2000w (2 sets) weighted gearbox with brake 120flanges

l Controller: Dual driver D2T200A

l Remote: C7 remote control(or industrial remote control)

l Battery: 48v120AH (ternary lithium or lithium iron phosphate)

l Working current: 150A

l Charging current: 54.6

l Drive wheel: 4pcs 140*140mm(high hardness fully imported polyurethane)

l Gear: Luo Meng titanium high strength gear (three modes)

l Plate: 16mm Q355 steel plate

l Maximum towing weight: 50T

l Maximumload:25T



1. Welcome to our store. If your place is remote, you will need to pay a remote fee.For very remote countries part of the shipping fee may be paid, and our customer service will contact you after you place an order. After shipment, if you need to change the address, there will be a fee for changing the address. We will contact you after checking the specific fee.

2. If the product’s package size is large and the package is heavy, it cannot be shipped by air or express, and can only be shipped by sea or train. The normal estimated delivery time is 2-4 months. Please wait patiently for the package during this period. Once the package leaves our warehouse, it will not be refunded at will. Thank you for your understanding.

3.If you are purchasing mechanical products or heavy packages, large packages, or packages with high value, please be sure to leave your E-email when placing an order so that the package can be shipped and delivered normally. Otherwise, if we cannot contact the customer when the goods arrive, the package cannot be delivered in time, and the customer needs to bear all the additional costs incurred (Storage fees, expensive secondary delivery fees, etc.). If the package processing time expires and the package still cannot be delivered and the customer cannot be contacted, the package will be destroyed and we will not provide any refund or compensation. Thank you for your understanding.

4. If the delivery information provided by you is inaccurate(The phone number is wrong, the customer cannot be contacted, and messages on the platform are not responded to. For large machine packages, if we cannot contact the customer and the customer does not reply to the message,the package cannot be shipped in time),Resulting packages are shipped late and delivered late, in the delivery failure.the customer shall bear all the responsibilities.

5.Extra-large products are custom-made items. Once shipped, they are non-returnable and non-exchangeable. In the event of damaged parts or malfunctions, we can provide video repair guidance and reship replacement parts.
